Super Market Gate

Technical Parameters

Material: SS304,thickness is no less than 1.2mm
Manufacturing Technique: CNC laser cutting
Barrier Material: Acrylic glass,  SS304 and so on
Gate Opening and Closing time: ≤ 0.4S
Passing Speed: Normally open-35persons/min; Normally closed-35persons/min
Communication Connection:  12V dry relay
Power: AC220C±10V,50HZ

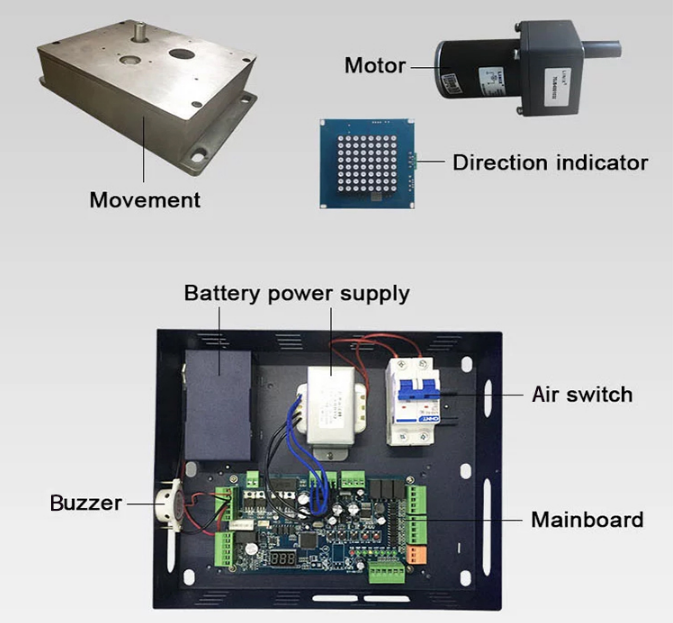

Motor: DC Brushless Motor, 140W/24V
Communication Distance: ≤1200M
10) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
11) Infrared Sensors: 9 or 10  Pairs
12) Relative Humidity: <95%, No Densation
13) Operating Temperature: -15°C-60°C
14) Working environment: indoor and outdoor(added the rain-shed)
15) Color: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like
16) Protection Grade: IP54
