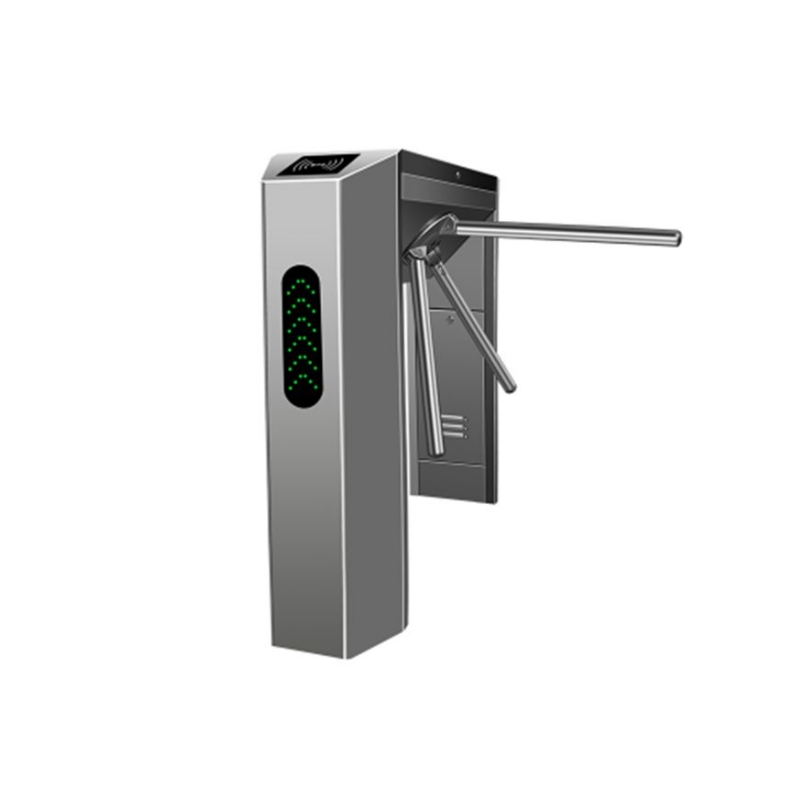

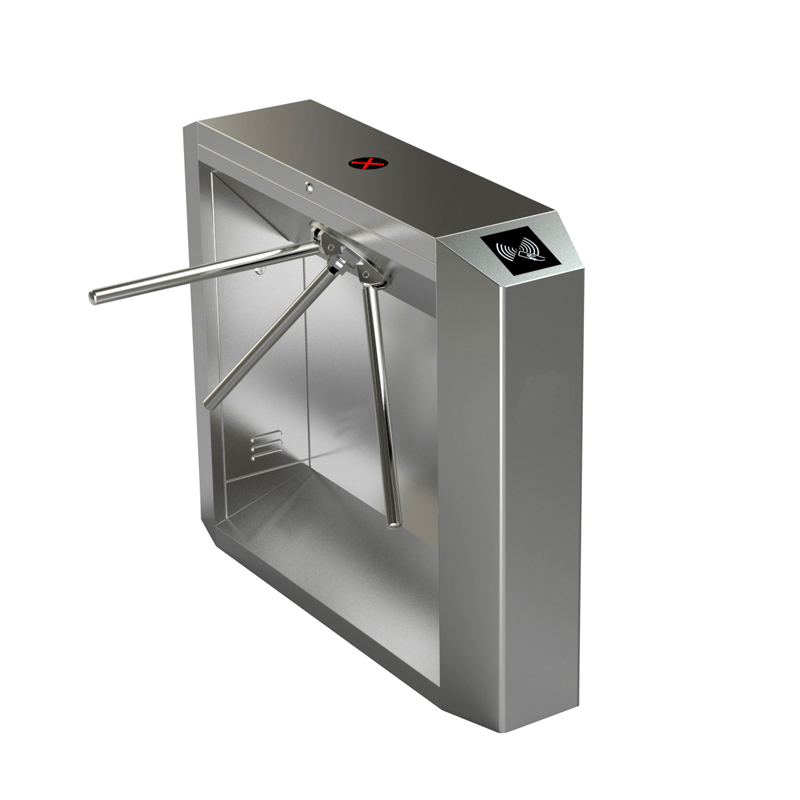

Long Bridge Tripod Turnstile Gate

Model:TP-101OCT

Technical Parameters

1.Power:AC220C±10V,50/60HZ; AC110C±10V,50/60HZ

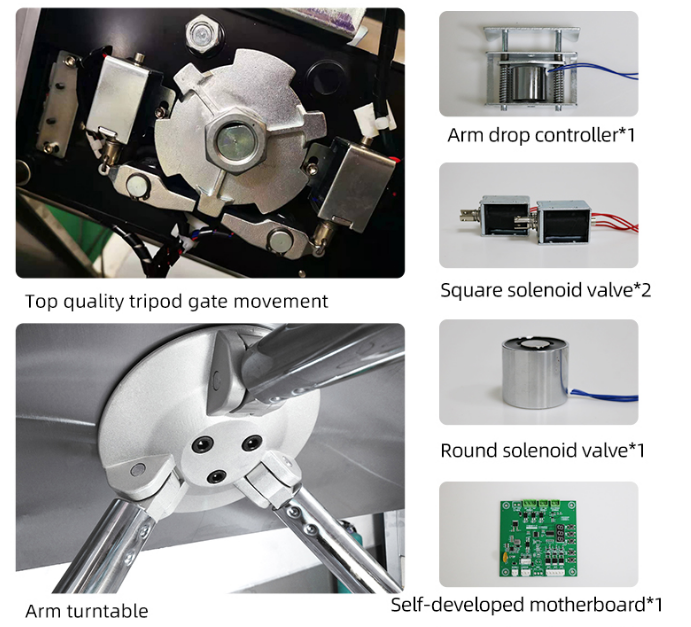

2.Machine core:Automatic
3.Operating Temperature:-45℃-60℃
4.Relative Humidity:≤95%, No Condensation
5:Passage Width:≤600mm
6.Passing Speed:45persons/min
7.Motor:DC  motor, 30W/24V
8.Input Connection:+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9.Communication Connection:RS485 Communication
10.Material:Stainless steel 304,thickness is no less than 1.3mm
11.Communication Distance:1200M
12.Running life:5--8 Million(Continuous Opening and Closing Operation)
13.Protect level:IP54

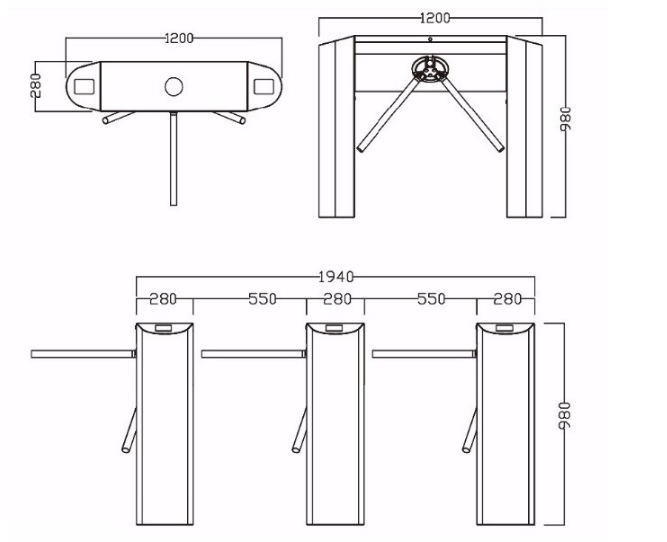

14.Size
1220*280*985mm(Bridge house ) ;
400*330*980mm(Vertical house);
custom made as demand
15.Colour:SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)

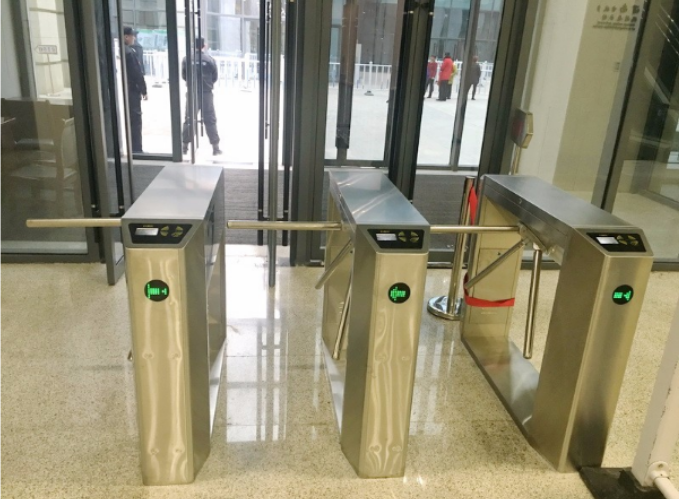

16.Operation Place:Subway Station, Hover-port,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
